e-PTFE Venting Technology: The Core Key to Long-Term Protection for Automotive Electronics

As modern vehicles accelerate toward comprehensive intelligence, the number of precision electronic devices onboard—sensors, headlamps, electronic control units, power battery packs, motors, and pump bodies—has surged dramatically. These core components demand the highest levels of sealing integrity, pressure stability, and environmental protection. During vehicle operation, the repeated start-stop cycles of equipment and dramatic ambient temperature swings generate severe air pressure fluctuations. A completely sealed enclosure is prone to shell deformation under pressure, seal failure, and internal condensation leading to water accumulation. An open or poorly protected structure, on the other hand, invites moisture, dust, and oil mist intrusion, causing circuit short-circuits and sensor malfunction. Waterproof venting components based on e-PTFE material have emerged as the definitive technical solution to resolve the conflicting protection requirements in automotive electronics and to guarantee long-term, reliable device operation.

The selective permeation principle of e-PTFE’s microporous structure is perfectly suited to the complex operating conditions of vehicles. Its unique three-dimensional node-and-fibril network features pore sizes precisely engineered between the dimensions of gaseous molecules and liquid water clusters. High-pressure gas and water vapor generated internally by heat and temperature differentials can freely escape, rapidly balancing internal and external pressure and eliminating problems such as negative-pressure enclosure collapse, positive-pressure swelling and cracking, and housing leakage. Simultaneously, external rain, muddy water, moisture, dust, oil mist, and other liquid and solid contaminants are completely blocked, achieving ultra-high IP68-level protection. In addition, e-PTFE material withstands extreme high and low temperatures, resists aging, tolerates vibration, and repels oil and fuel contaminants. It maintains stable, undiminished performance under extreme temperature swings from -40°C to 125°C and the continuous high-frequency vibration and shock loads of driving.

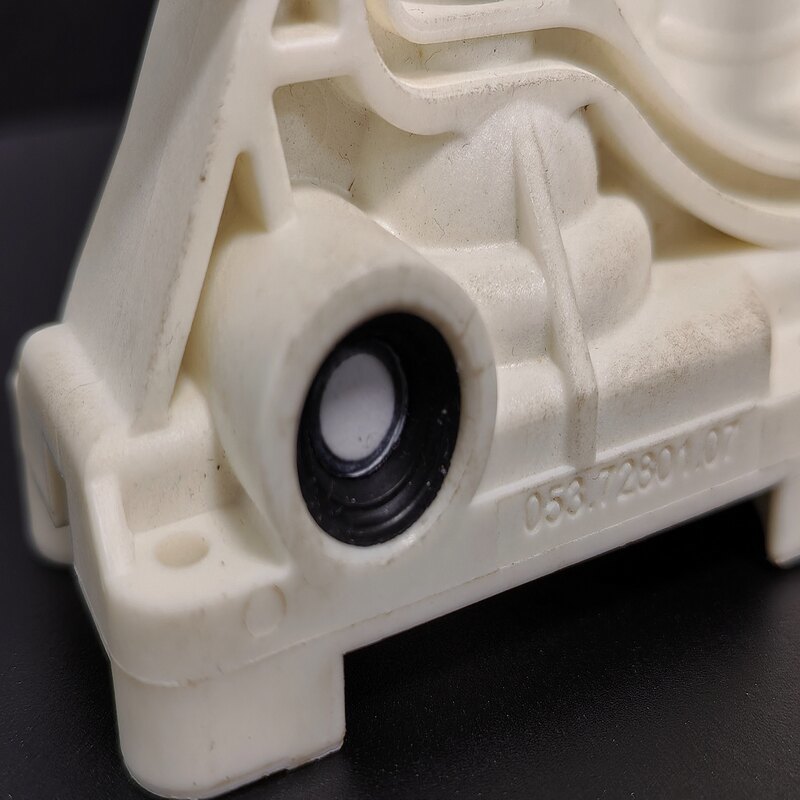

This technology is broadly and critically adapted across all categories of core automotive equipment. Within the sensing system, precision components such as millimeter-wave radar, ACC microwave radar, temperature and pressure sensors, and wheel speed sensors are equipped with adhesive-backed or weldable e-PTFE venting membranes. These membranes prevent dust and moisture ingress, ensuring accurate, interference-free transmission of sensor data and preventing malfunctions in vehicle control systems. In the lighting system, specialized venting caps rapidly eliminate temperature-differential condensation, solving the perennial problems of headlamp fogging, water accumulation, yellowing, and reflector aging, thus safeguarding lighting performance and circuit safety. In the powertrain system, the power battery pack, powertrain components, drive motors, pump bodies, and fluid reservoirs are fitted with venting plug assemblies. These allow timely pressure relief and venting of gases, avoiding safety hazards caused by high-pressure accumulation, while simultaneously blocking external moisture from corroding the intricate internal structures.

In the context of overall vehicle quality upgrades, the value of e-PTFE venting protection technology is particularly pronounced. Traditional automotive protective components are prone to aging, clogging, and low protection ratings; over time they frequently lead to electronic device failures, increasing the after-sales repair burden for vehicles. e-PTFE venting components, with their long-lasting and stable protective performance, can significantly extend the service life of automotive electronics, reduce the overall vehicle failure rate, and enhance driving safety and reliability. Currently, e-PTFE waterproof venting technology has become standard protective equipment for mid-to-high-end passenger vehicles and new energy vehicles, standing as a vital technical pillar for the development of intelligent, high-quality automobiles.
