Acoustic Vent Membranes: The Dual-Core Carrier of Sound Performance and Protection in Consumer Electronics

In an era where smart wearables, true wireless earphones, portable speakers, and smart home devices are iterating at breakneck speed, two performance indicators have emerged as decisive competitive advantages: immersive acoustic experience and uncompromising environmental protection. Users expect their devices to deliver crystal-clear calls during a downpour, booming music by the pool, and reliable voice pickup in dusty workshops. Historically, however, product engineers faced a stubborn trade-off: a device could either be waterproof and acoustically muffled, or sound-open and dangerously exposed to moisture, dust, and debris. This long-standing pain point has been fundamentally resolved by the acoustic vent membrane, a core component built on expanded polytetrafluoroethylene (e-PTFE) technology. Serving as the critical interface for microphone reception, speaker output, and acoustic channel balancing, these membranes have become the indispensable dual-function carrier that simultaneously maximizes sound fidelity and physical protection across the entire spectrum of consumer electronics—from smartwatches and Bluetooth speakers to high-end video doorbells and virtual imaging glasses.

The e-PTFE Microporous Structure: A Study in Precision Filtration

At the heart of every acoustic vent membrane lies a unique microporous architecture created from e-PTFE through a highly controlled expansion and stretching process. This process produces a three-dimensional interconnected network of nodes and fibrils, resulting in a mesh of pores precisely regulated between 0.1 and 1.0 micrometers in diameter. This meticulous pore-size engineering is the foundation of differential permeability. To understand the magic, consider scale: a fine water droplet typically measures 20 to 300 microns across, while common dust and particulate pollutants are almost always larger than a few microns. The membrane’s sub-micron pores, therefore, are significantly smaller than liquid water molecules and solid contaminants, effectively blocking them through surface tension and size exclusion. Conversely, these same pores are orders of magnitude larger than air molecules and the vibrational displacement amplitudes associated with sound waves. As a result, acoustic energy and water vapor pass through with negligible resistance, while liquid water, sweat, oil, and dust are stopped completely.

Because e-PTFE is inherently hydrophobic and can be further engineered for oleophobicity, liquid beads up on the surface and cannot wick or penetrate even under pressure differentials experienced at depth. The open porosity of the membrane—often exceeding 80%—ensures extremely low acoustic impedance, meaning the transfer of sound pressure waves suffers almost no attenuation. This dual open-and-closed logic empowers the device to achieve true IP67 and IP68 protection ratings, safeguarding sensitive acoustic transducers from rain, immersion, body sweat, household grime, and even accidental splashes of oil and chemicals, all while letting music and voice pass through with pristine clarity.

Uncompromised Acoustic Transparency

Traditional protective materials like non-woven fabrics, woven meshes, or simple perforated films inherently degrade audio quality. They add mass and stiffness that reflect and absorb sound energy, leading to reduced sensitivity, distorted frequency response, and annoying resonances or buzzing at specific pitches. Over time, such materials often clog with dirt or moisture, permanently degrading performance. The e-PTFE acoustic vent membrane, by contrast, maintains exceptional acoustic transparency throughout its entire service life. Sound waves pass through the open micropores as if the barrier barely exists. Rigorous testing shows virtually no insertion loss, minimal total harmonic distortion, and a flat frequency response curve across the voice band and beyond. For MEMS microphones in earbuds, this means natural-sounding voice capture without muffling; for small speakers in rugged outdoor devices, it translates to punchy, undistorted audio output. The membrane essentially disappears acoustically, enabling product designers to finalize tuning without having to compensate for protective layers.

Engineered Into Purpose-Built Product Lines

Recognizing that a smartwatch submerged during a swim faces a different set of demands than a doorbell microphone exposed to driving rain or a loudspeaker in a portable Bluetooth speaker, the acoustic vent membrane family has been strategically diversified. Dedicated variants include:

• Microphone-specific membranes: optimized for ultra-low acoustic mass to preserve high-frequency detail and microphone sensitivity in MEMS and electret mic applications.

• Deep-waterproof smartwatch membranes: enhanced pressure resistance that maintains IP68 integrity during swimming, diving, and high-velocity water sports, while enabling clear voice calls and speaker playback.

• Speaker and multimedia membranes: built to handle higher sound pressure levels without deformation or added distortion, perfect for rugged Bluetooth speakers and outdoor audio gear.

• AR/VR glasses and compact imaging device membranes: ultra-thin profiles with minimal footprint, fitting into inner diameters as small as 1.5 mm, crucial for today’s densely packed wearable electronics where every fraction of a millimeter counts.

This specialization ensures that each application receives a membrane tuned exactly to its mechanical, acoustic, and environmental requirements, rather than settling for a one-size-fits-all compromise.

Long-Term Reliability Under Harsh Conditions

Consumer electronics are subjected to an extraordinary range of environmental stresses: baking sun on a windowsill, freezing temperatures in a ski jacket, constant humidity in a bathroom, corrosive sweat during workouts. Ordinary protective materials harden, crack, or become blocked under such cycling. e-PTFE, by its chemical nature, is extraordinarily inert and robust. It withstands continuous operating temperatures from well below freezing to well above typical electronic service limits without becoming brittle or soft. It resists ultraviolet degradation, oxidation, and chemical attack. An acoustic vent membrane on an outdoor security doorbell can face years of direct sun, rain, ice, and city pollution without losing its hydrophobic properties or acoustic performance. A fitness wearable that endures daily sweat and salt exposure will not suffer membrane clogging or breakdown. This long-duration stability translates directly to reduced warranty returns, higher user satisfaction, and enhanced brand credibility.

Global Compliance and Effortless Integration

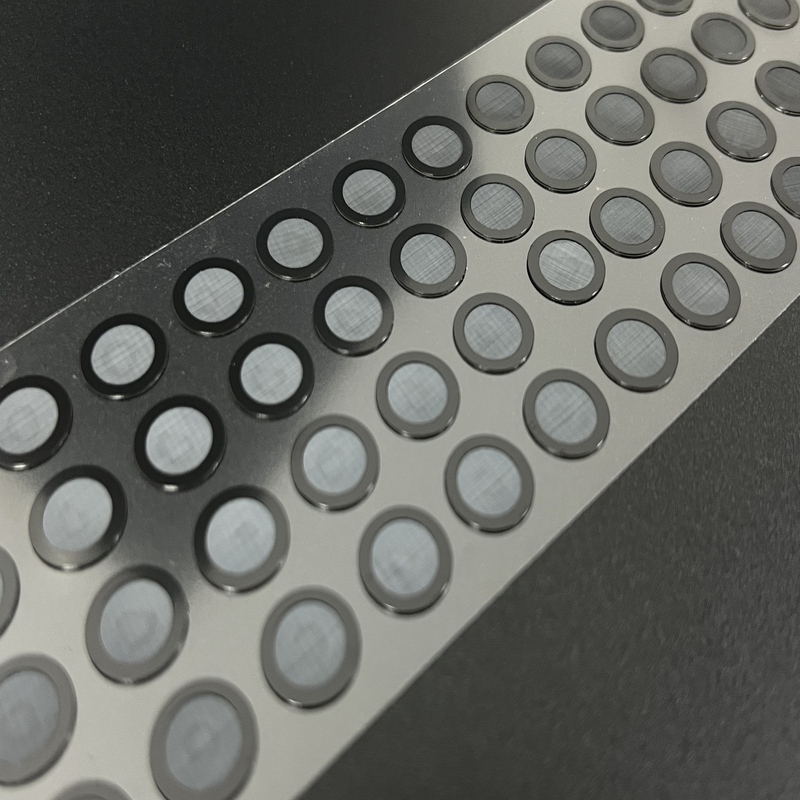

All membranes in the series fully comply with ROHS 2.0 and REACH international environmental standards, containing no hazardous substances and meeting the strictest requirements for global export into European, North American, and Asian markets. In terms of manufacturing, the product is supplied in formats compatible with both manual assembly for low-volume, specialized builds and tape-on-reel packaging for high-speed automated pick-and-place production lines. Pressure-sensitive adhesive backings and precisely die-cut shapes allow fast, accurate placement without specialized tools, reducing labor costs and boosting throughput. This compatibility with modern SMT and assembly automation significantly lowers the total production cost for brands and contract manufacturers alike.

Conclusion: An Invisible Necessity

As consumer electronics continue to shrink and venture into ever more demanding environments, the acoustic vent membrane has cemented its role as a silent enabler. It shields fragile transducers from liquid and particulate damage, preserves absolute sound fidelity, and upholds the sleek, seamless design aesthetic that modern consumers demand. From the most basic Bluetooth headset and microphone module to the most advanced AI-powered smart glasses and virtual reality headsets, this e-PTFE-based solution provides the critical dual-core value—superior acoustics and bulletproof protection—ensuring that every device delivers its promised experience reliably, rain or shine, dust or dive.
